8 系列20倍高清云台摄像机

产品概述

Bolin 8系列高清云台摄像机是一款专业级摄像机,分辨率高达1080P60/59.94。支持HDMI、3G-SDI、IP、USB2.0同时输出,配备超静音的云台和云台电机,适用于中小型会议室、视频工作室,视频会议、礼拜堂、远程学习、远程医疗、政府、教育、企业培训的理想选择。

    主要特点

  • Power-In-Hands-8

    掌控之中-设计时充分考虑了灵活性,质量和便携性

    ■ FHD高分辨率图像。 ■ 同时支持3G-SDI, HDMI, IP, USB2.0视频输出,内置音频。 ■ 云视频会议USB即插即用。 ■ SDI / HDMI适用于ProAV。 ■ 便捷的RTMP和RTSP IP流传输。 ■ 安静,快速,平稳的运动在您的控制之下。

    ■ FHD高分辨率图像。 ■ 同时支持3G-SDI, HDMI, IP, USB2.0视频输出,内置音频。 ■ 云视频会议USB即插即用。 ■ SDI / HDMI适用于ProAV。 ■ 便捷的RTMP和RTSP IP流传输。 ■ 安静,快速,平稳的运动在您的控制之下。

  • IP-Multi-Browser-8

    IP视频流–远程控制和查看

    ■ web浏览器通过IP网络远程查看平滑稳定的音视频流(最高1080p60)。 ■ 支持在线视频和实时流RTSP,RTMP。 ■ 通过Visca Over IP协议进行云台摄像机IP控制。 ■ 支持HTML5,兼容多种Web浏览器。

    ■ web浏览器通过IP网络远程查看平滑稳定的音视频流(最高1080p60)。 ■ 支持在线视频和实时流RTSP,RTMP。 ■ 通过Visca Over IP协议进行云台摄像机IP控制。 ■ 支持HTML5,兼容多种Web浏览器。

  • Control-VCC-8HD-1008

    控制–一切尽在您的掌控之中

    ■ 各种控制方法均可满足您要从本地或IP环境控制摄像机的任何情况。 ■ 串行RS232,RS422 / 485和IP。 ■ 协议:VISCA,Pelco,VISCA over IP和ONVIF IP。

    ■ 各种控制方法均可满足您要从本地或IP环境控制摄像机的任何情况。 ■ 串行RS232,RS422 / 485和IP。 ■ 协议:VISCA,Pelco,VISCA over IP和ONVIF IP。

  • panning_new_1

    云台–平稳,安静,精确的运转和预设的图像参数

    ■ 平稳,安静,精确的转动。速度可调节(预设6个等级。
    ■ 自适应变焦和超慢速控制相结合,提供准确有效的操作体验。
    ■ 图像配置预设-使用预设和快速访问操作恢复图像参数设置。

    ■ 平稳,安静,精确的转动。速度可调节(预设6个等级。
    ■ 自适应变焦和超慢速控制相结合,提供准确有效的操作体验。
    ■ 图像配置预设-使用预设和快速访问操作恢复图像参数设置。

功能特性

  • 视频输出同时输出HDMI1.4、3G-SDI、IP、USB2.0
  • 超高分辨率FHD 1080p60帧率图像BOLIN VCC 8系列云台摄像机专为ProAV和广播应用而设计, 具有出色的广播级图像质量,可以在高达 1080p60帧率下拍摄高运动素材,最适合捕捉快速移动目标
  • 视频格式1080p:60/59.94/50/29.97/30/25; 1080i:60/59.94/50; 720p;60/59.94/50/30/29.97/25
  • 电源DC 12V, PoE+ (IEEE 802.3at)
  • 行业标准和兼容性SDI:符合SMPTE的广播和ProAV工作流程标准。 HDMI:提供HDMI视频接口可简化与兼容视频会议系统,高清视频监视器/显示器可直接连接。
  • 图像配置预设过预设和快速访问操作恢复图像参数设置。

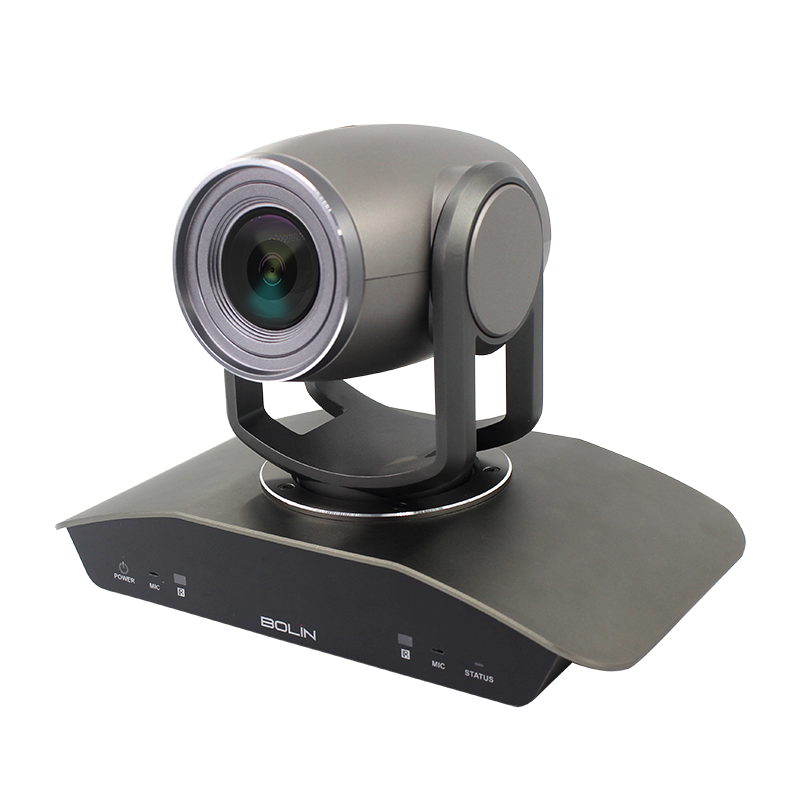

产品图示

规格参数

成像器件 1/2.8'' CMOS 2.13MP
镜头 光学变焦20倍,f=5.2~104mm
数字变焦 16X
水平视场角 55.8(W)~3.2(T)
光圈 F1.6(W)~F3.0(T)
最低照度 0.5lux(白天),0.1lux(夜晚)
快门速度 1/1~1/10000s
聚焦 Auto Focus, Manual Focus,
白平衡 AUTO, ATW, Indoor, Outdoor, One Push WB, Manual WB
曝光 Full Auto, Shutter Priority, Iris Priority, Manual, Bright
特征 翻转,镜像,防闪烁
宽动态 支持
降噪 开/关(1-5/关,6级),2D / 3D
信噪比 50db
系统同步 内同步
HDMI 视频输出 1080p:60/59.94/50/29.97/30/25; 1080i:60/59.94/50; 720p:60/59.94/50/30/25
SDI 视频输出 1080p:60/59.94/50/29.97/30/25; 1080i:60/59.94/50; 720p;60/59.94/50/30/29.97/25
IP 视频输出 1080p:60/50/30/25; 720p:60/50/30/25
USB视频输出 1920x1080, 1280x720, 720x576, 640x480, 320x240; Frame Rate: 30/25/20/15/10
水平转动 水平: ±175°(转动速度自适应: 0.05°~100°/s)
垂直转动 垂直: +90°~ -30°(转动速度自适应: 0.05°~50°/s)
预置位 256个(转动速度自适应: 最高 150°/S, 使用遥控器可设置9个预置位 ), 0~5 个速度设置级别
预置位速度 转动速度可调:0-5个级别
预置位记忆 支持(图像参数的预设记忆)
上电动作 支持
使用环境 室内
视频接口 1 x HDMI , 1 x BNC-3G-SDI(1080P), 1 x IP, 1 x USB2.0
控制接口 1 x RJ45: IP; 2 x RJ45: RS232/RS422/RS485, 红外遥控
控制协议 VISCA / Pelco D / Onvif / VISCA over IP
系统升级 USB(仅限程序升级)
SDI 格式 SD-SDI, HD-SDI, 3G-SDI
视频格式 (SDI) 1080p:60/59.94/50/29.97/30/25; 1080i:60/59.94/50; 720p;60/59.94/50/30/29.97/25
标准 支持SMPTE 292(1.5Gb / s),SMPTE 425-A(3Gb / s)和SMPTE352 SDI元数据
USB端口 USB2.0, Type B
编码 MJPEG、H.264
视频格式 1920x1080, 1280x720, 720x576, 640x480, 320x240; Frame Rate: 30/25/20/15/10
兼容集成 UVC
视频编码 MJPEG,H.264/H.265
IP视频输出 1080p:60/50/30/25; 720p:60/50/30/25
协议 IPv4,TCP/IP,UDP,DHCP,RTP,RTSP,HTTP,RTMP
视频流 3数据流功能将实时满足各种带宽,帧速率和存储要求
音频编码 G711, G726
兼容 ONVIF, VISCA Over IP
工作温度 -10 to +50 (°C)
工作湿度 ≤80%适用
电源输入 DC 12V, PoE+ (IEEE 802.3at)
功率 15W
尺寸 260x145x192mm
重量 2.4kg

比较表对比更多的产品

选中产品以比较不同的型号,或转到“产品对比”以进行更多产品比较。

  • Maximum 4 compare products at once, please reselect.
  • Maximum 4 compare products at once, please reselect.
  • Maximum 4 compare products at once, please reselect.
  • Maximum 4 compare products at once, please reselect.
  • Maximum 4 compare products at once, please reselect.
马上比较

信息下载转到帮助&下载中心

下载产品彩页和用户指南,单击“转到学习和下载中心”以获取更多产品信息。

AAAArray ( [faq] => Array ( ) [产品信息] => Array ( [0] => Array ( [id] => 5093 [title] => VCC-HD820B-SMN 云台摄像机 – 产品信息 [files] => Array ( [0] => Array ( [file_label] => VCC-8系列 HD 云台摄像机 彩页 [file] => https://bolin-av.com/wp-content/uploads/2020/04/VCC-HD820B-SMN-DATASHEET-.pdf [file_login] => [editor_login] => [file_show_in_detail] => 1 ) [1] => Array ( [file_label] => VCC-8系列 HD 云台摄像机 用户手册 [file] => https://bolin-av.com/wp-content/uploads/2020/04/VCC-HD820B-SMN-UserManual-20200903-1-1.pdf [file_login] => [editor_login] => [file_show_in_detail] => 1 ) [2] => Array ( [file_label] => VCC-8系列 HD 云台摄像机 快速操作手册 [file] => https://bolin-av.com/wp-content/uploads/2020/04/VCC-HD820B-SMN快速操作手册_20200608.pdf [file_login] => [editor_login] => [file_show_in_detail] => 1 ) ) [product_firmware] => [links] => [videos] => [images] => ) [1] => Array ( [id] => 10549 [title] => VCC-HD820B-SMN 云台摄像机 – 安装信息 [files] => Array ( [0] => Array ( [file_label] => VCC-HD820B-SMN HD 云台摄像机 – 尺寸图 [file] => https://bolin-av.com/wp-content/uploads/2021/06/VCC-M820BI-4FN1_Dimensioned-drawing.pdf [file_login] => [editor_login] => [file_show_in_detail] => 1 ) [1] => Array ( [file_label] => VCC系列 室内 云台摄像机 墙装支架 尺寸图 [file] => https://bolin-av.com/wp-content/uploads/2020/05/VCC-Series-Indoor-PTZ-Camera-Wall-Mount-Dimensioin.pdf [file_login] => [editor_login] => [file_show_in_detail] => 1 ) [2] => Array ( [file_label] => VCC系列 室内 云台摄像机 吊装支架 尺寸图 [file] => https://bolin-av.com/wp-content/uploads/2020/04/VCC-Series-Indoor-PTZ-Camera-Ceiling-Mount-Dimension.pdf [file_login] => [editor_login] => [file_show_in_detail] => 1 ) [3] => Array ( [file_label] => VCC-8系列 云台摄像机 吊装示意图 [file] => https://bolin-av.com/wp-content/uploads/2017/05/VCC-8-Series-PTZ-Camera-Wall-Mount-Installation-1.pdf [file_login] => [editor_login] => [file_show_in_detail] => 1 ) [4] => Array ( [file_label] => VCC-8系列 云台摄像机 墙装示意图 [file] => https://bolin-av.com/wp-content/uploads/2017/05/VCC-8-Series-PTZ-Camera-Wall-Mount-Installation.pdf [file_login] => [editor_login] => [file_show_in_detail] => 1 ) ) [product_firmware] => [links] => [videos] => [images] => ) [2] => Array ( [id] => 8406 [title] => 大功率 97W POE 供电盒 – 产品信息 [files] => Array ( [0] => Array ( [file_label] => 安装导轨 墙装示意图 [file] => https://bolin-av.com/wp-content/uploads/2017/02/installation-stepnew.pdf [file_login] => [editor_login] => [file_show_in_detail] => 1 ) [1] => Array ( [file_label] => 大功率 97W POE 供电盒 尺寸图 [file] => https://bolin-av.com/wp-content/uploads/2017/01/High-Power-97W-POE-Injector-Dimension-1-1.pdf [file_login] => [editor_login] => [file_show_in_detail] => 1 ) ) [product_firmware] => [links] => [videos] => [images] => ) ) [产品功能&性能特点] => Array ( ) [产品图片] => Array ( [0] => Array ( [id] => 5086 [title] => VCC-HD820B-SMN 云台摄像机 – 产品图片 [files] => [product_firmware] => [links] => [videos] => [images] => Array ( [0] => Array ( [image_label] => [image] => 10586 [image_login] => [editor_required] => [image_show_in_detail] => 1 ) [1] => Array ( [image_label] => [image] => 10585 [image_login] => [editor_required] => [image_show_in_detail] => 1 ) [2] => Array ( [image_label] => [image] => 10584 [image_login] => [editor_required] => [image_show_in_detail] => 1 ) [3] => Array ( [image_label] => [image] => 10587 [image_login] => [editor_required] => [image_show_in_detail] => 1 ) [4] => Array ( [image_label] => [image] => 10582 [image_login] => [editor_required] => [image_show_in_detail] => 1 ) [5] => Array ( [image_label] => [image] => 10583 [image_login] => [editor_required] => [image_show_in_detail] => 1 ) ) ) ) [摄像机控制] => Array ( ) [视频信号和图像] => Array ( ) [软件] => Array ( [0] => Array ( [id] => 9562 [title] => VCC-HD820B-SMN 云台摄像机 固件升级 – MCU [files] => [product_firmware] => Array ( [0] => Array ( [product_firmware_label] => MCU FW: V8HD-20BI-MCU-004.bin [file] => https://bolin-av.com/wp-content/uploads/2021/01/IP-Finder-IPF-NX-Ver.1.2.9-Setup.msi [log] =>

改进和优化
1.定期发布
2.修复了一些bug

适用摄像机型号
VCC-M820BI-SMN, 产品料号: 01070448A1
VCC-M820BI-SMN, 产品料号: 8103C001

发布说明
标准版本

[file_login] => 1 [editor_required] => [firmware_show_in_detail] => 1 [create_date] => 2020/02/03 ) ) [links] => [videos] => [images] => ) [1] => Array ( [id] => 9565 [title] => VCC-HD820B-SMN 云台摄像机 固件升级 – IP [files] => [product_firmware] => Array ( [0] => Array ( [product_firmware_label] => IP FW: CAM-20BI-DS-939.bin [file] => https://bolin-av.com/wp-content/uploads/2021/04/CAM-20BI-DS-P0S010B370A0FA09391000M.bin [log] =>

改进和优化
1.定期发布
2.修复一些bug

适用摄像机型号
VCC-M820BI-SMN, 产品料号: 01070448A1
VCC-M820BI-SMN, 产品料号: 8103C001

发布说明
标准版本

[file_login] => 1 [editor_required] => [firmware_show_in_detail] => 1 [create_date] => 2021/03/03 ) ) [links] => [videos] => [images] => ) ) )

订单信息

使用订购信息订购摄像机和配件。

型号 描述 备注
VCC-HD820B-SMN Full HD, Sony 机芯, 光学变焦 20X 摄像机
VCC-P12-2 DC 12V 2A电源适配器 标配
VCC-RC-2 红外遥控器 标配
VCC-CC45232 RJ45转RS232转换线 标配
VCC-CC45RS RJ45转RS422/485转换线(摄像机使用) 标配
快速操作手册 标配
VCC-WM 壁装支架(黑色) 选购
VCC-WM/W 壁装支架(白色) 选购
VCC-CM 吊装支架(黑色) 选购
VCC-CM/W 吊装支架(白色) 选购
VCC-CC8MDP RS232转8 PIN凤凰连接线 选购
